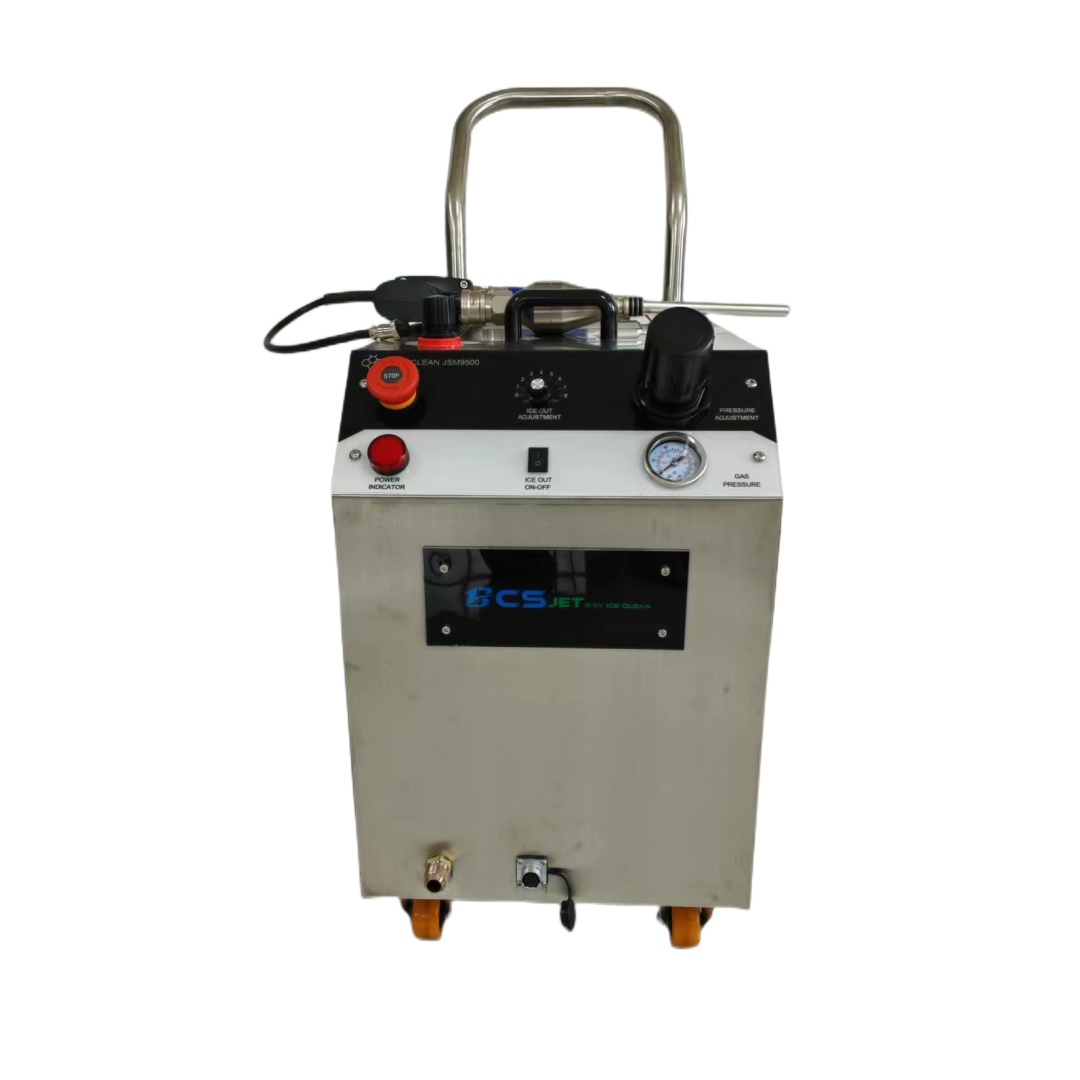

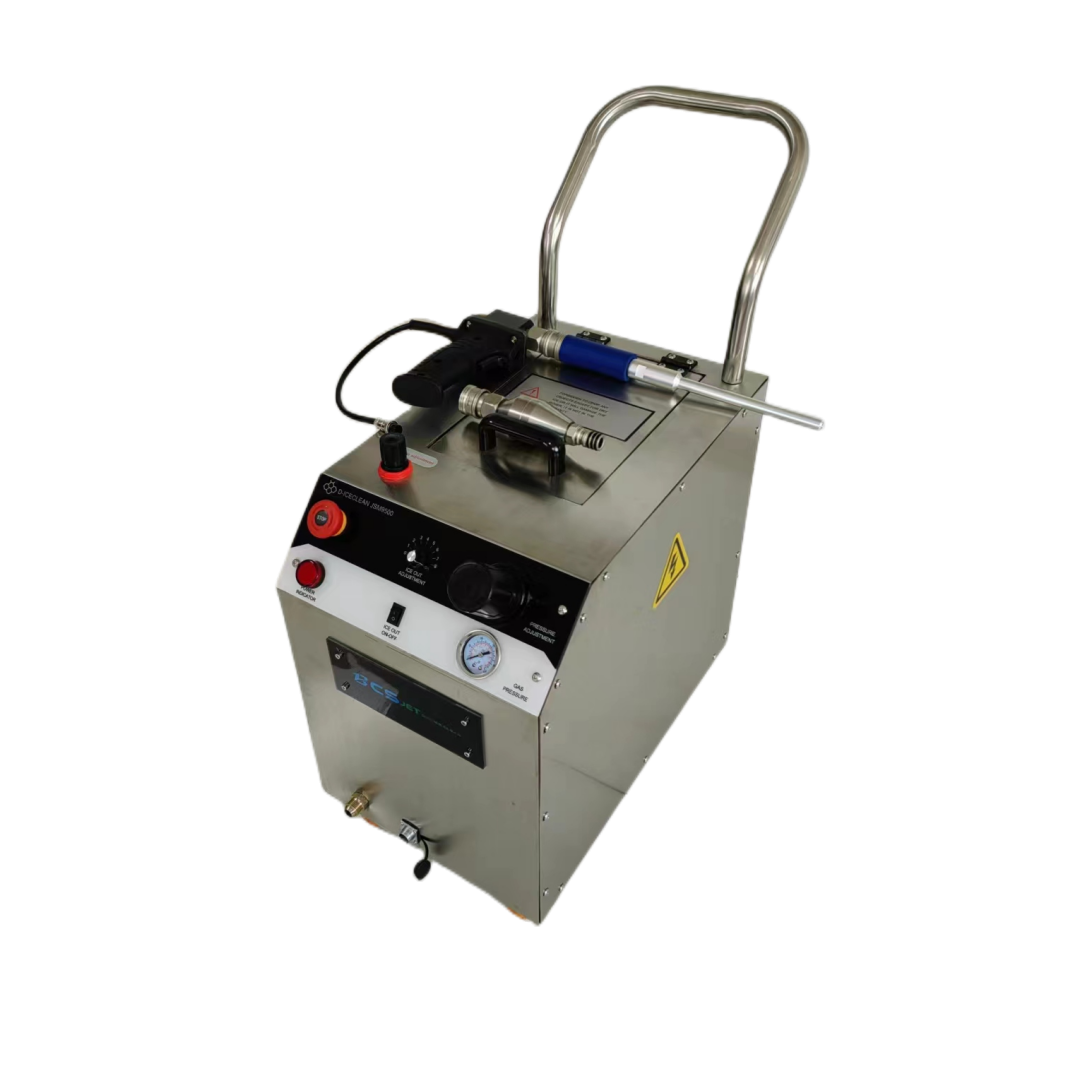

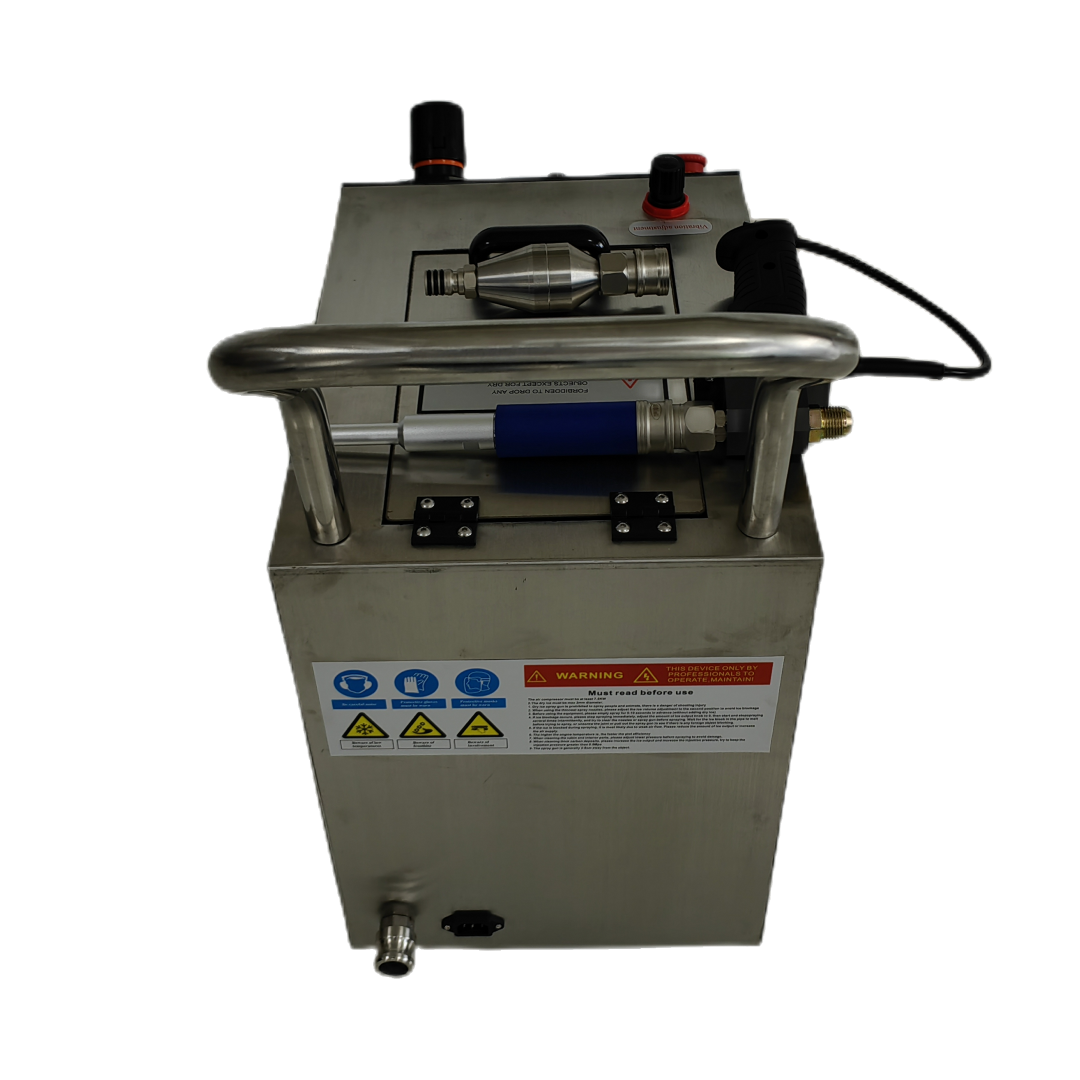

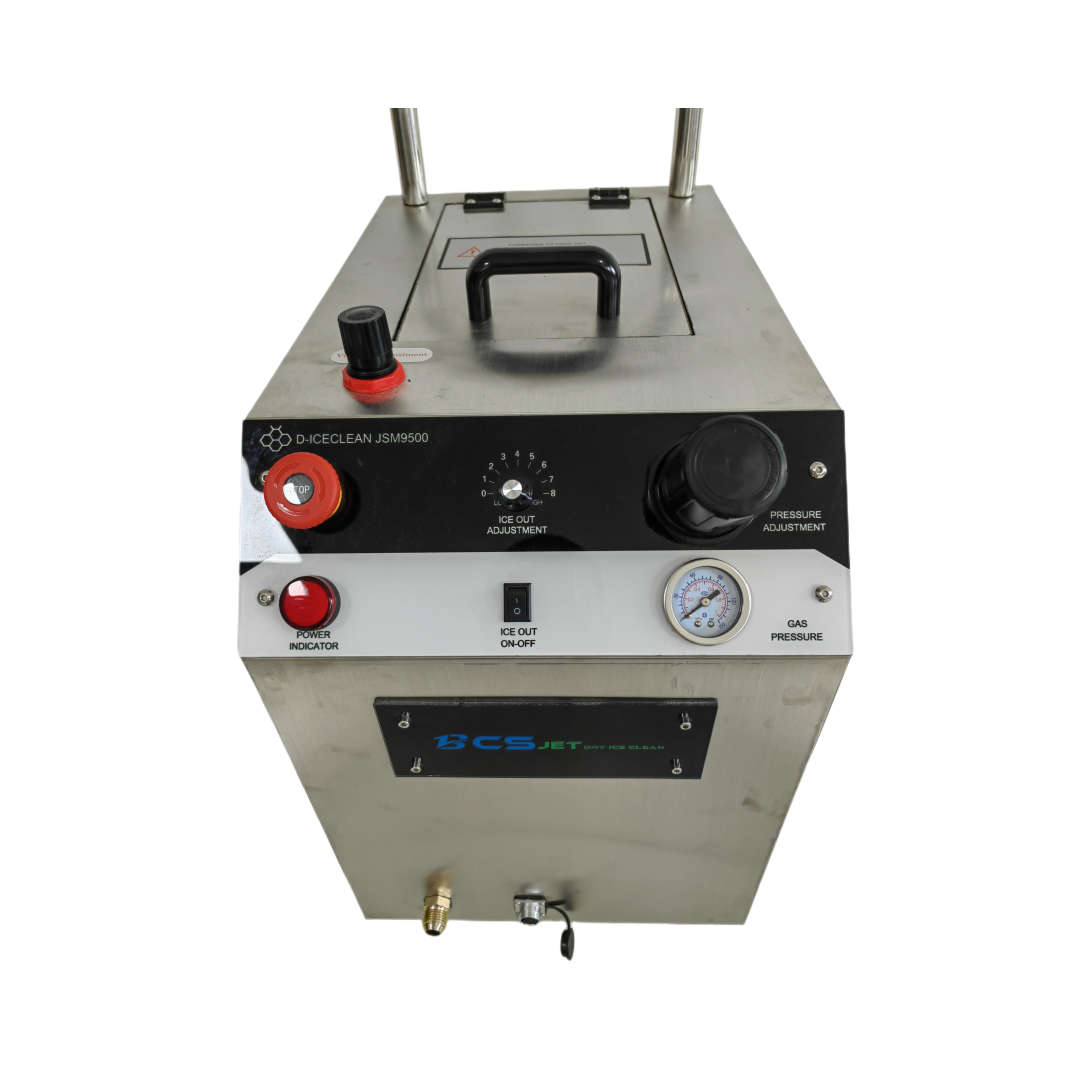

Portable Stainless Steel Dry Ice Blasting Cleaning Machine

Portable Dry Ice Cleaner Dry Ice Blasting Machine

Dry ice blasting is a revolutionary blasting method that uses small, compact dry ice pellets as the blasting material. The dry ice pellets are accelerated in a jet of compressed air similar to that used in traditional blasting methods.

Dry Ice Blasting will often allow a company's production equipment to be cleaned while in operation without the need for dismantling and costly downtime.

Dry Ice Blasting is non-abrasive, and surfaces are therefore treated gently. The system can thus be used on easily-damaged surfaces like nickel, chromium and soft aluminum.

The process is dry, and no waste materials are produced. This means that cleaning can be carried out even during short production shutdowns.

Specification

Product name	Dry ice cleaning machine
Model	JMS9500
Air supply flow	0.5~4.0m³/min
Air supply pressure	0.1~1.0Mpa (adjustable)
Dry ice consumption	0~1.6kg/min
Hopper capacity	10kg
Dry ice state	3mm granular
Power	0.37kw
Drive mode	Permanent magnet synchronous
Voltage	AC220V/50~60HZ
Size	60*40*75cm
Weight	45kg

Comparasion of Cleaning Effect

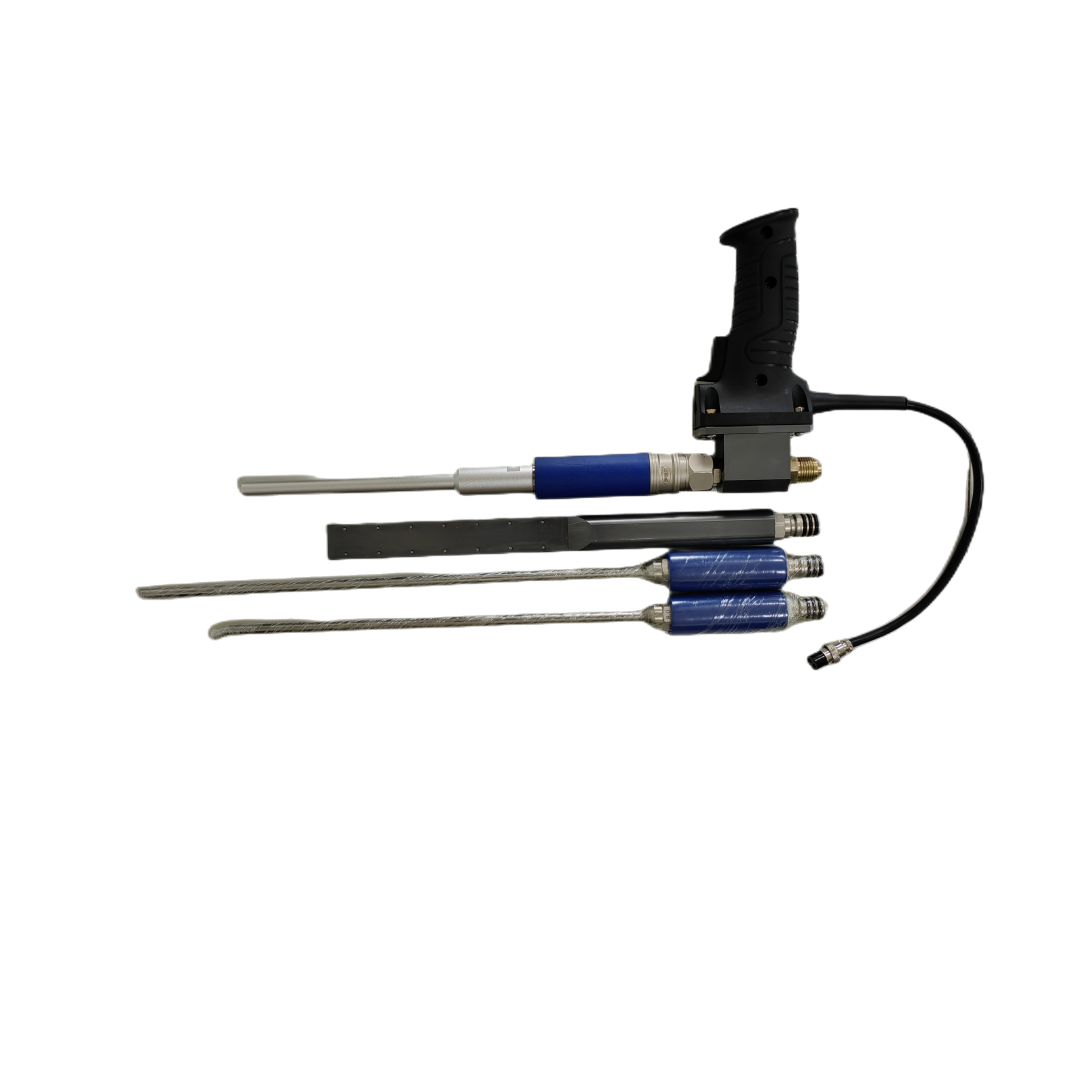

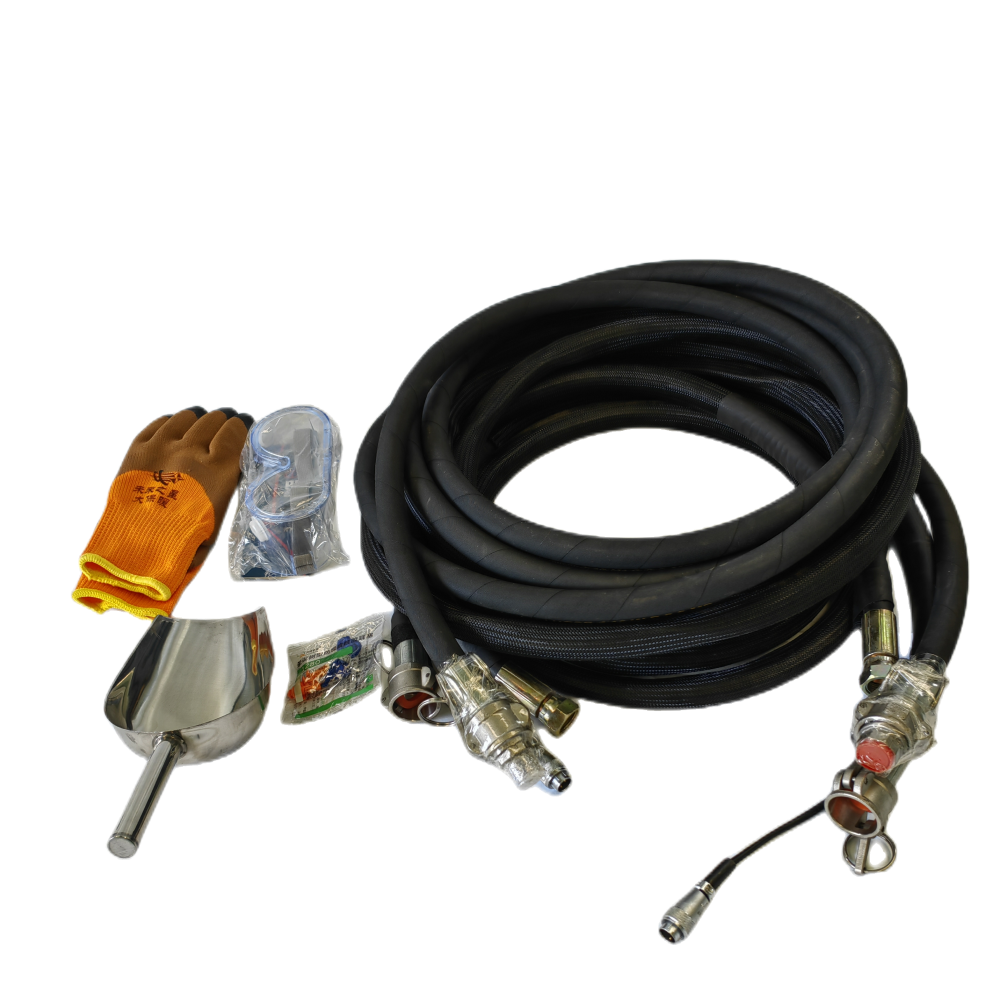

Accessory

Application

Using the most advanced dry ice air pressure mixing feeding system, the industry's unique quick-change rollers are matched with different caliber nozzles, which can be applied to: EVA molds in the printing industry, petrochemical industry, foundry industry, vulcanization molds, motor power, aviation and aerospace industries, Heating industry, metal surface rust and paint removal, fan impeller surface coating, second-hand refurbishment and other industrial cleaning.

Precautions

1) Before carrying out the work, it is necessary to wear protective goggles, ear muffs, work clothes and gloves.

2) Before working, set the ice feed speed to "0" and check if condensate is blasted out of the nozzle.

3) After finishing dry ice blasting, it is recommended to adjust the dry ice flow to "0". Then turn on the blasting gun for 30s to eject all the dry ice in the ice tray and the dry ice tube without leaving any residue to prevent ice blockage.

4) It must be kept clean when adding dry ice, and no other foreign objects fall into the equipment.

5) This machine uses solid CO2 particles, and ventilation must be ensured when working.

FAQ

Q1:Does it produce it own ice? Where do I get the dry ice from?

A: No,it doesn't product the dry ice.You need to buy the dry ice in the local market.

Q2: What size and form of dry ice required to use on the machine?

A: Use the 3mm particles dry ice is ok,the machine will crush the dry ice.

Q3: Any suggestion for the compressor?

A: We suggest you use 7.5KW or above screw air compressor. The pipe diameter of the gas supply path is ≥DN15 to ensure the flow The air compressor is away from the cleaning site ≯50m

Q4: Does the machine run on single phase?

A: No,it doesn't run on single phase.The socket must to connect with earth wire.

Q5: What will dry ice blasting NOT remove from my vehicle?

A: The process will remove almost any cosmoline, grease, oil, road debris from a vehicles undercarriage. It will NOT remove rust that has already started. It will clean surface rust. This process will also NOT remove paint from a vehicle.

Q6: Will dry ice blasting harm anything on vehicle?

Answer: No. Dry ice is a solid state form of C02 (carbon dioxide), when the ice makes contact with the surface it is cleaning it freezes the grime and the blast of air simply removes the frozen grime with the dry ice dissipating into C02 and leaving only the dirt to be swept from the floor. No harmful chemicals or degreasers needed. No water needed to be sprayed either! It is completely safe on all rubber, metal and electrical components.
