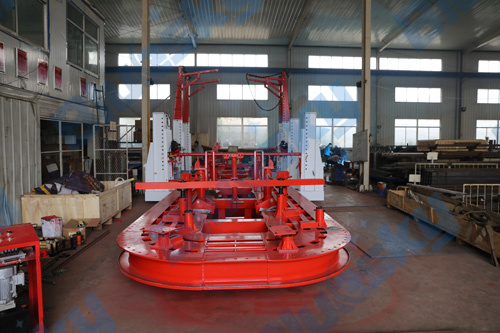

Name: Truck frame straightener FT300
Brand: Bluesky Spray Booth
Availability: InStock
Rating: 5 (1 reviews)

Description

FT300 (For Truck)	A	B	C
Working platform length	30'/9.1m	34'/10.4m	38'/11.6m
Working platform width	85'/2.6m	85'/2.6m	85'/2.6m
Working platform height	24''/0.6m	24''/0.6m	24''/0.6m
Max working pressure of hydraulic	70MPa(10000psi)	70MPa(10000psi)	70MPa(10000psi)
Max lifting force of tower cylinder	245KN	245KN	245KN
Pulling range of the tower	270°/360°	270°/360°	270°/360°
The pressure of the air source	0.8MPa	0.8MPa	0.8MPa
Max lifting weight	40000kg	40000kg	40000kg

Features:
1. The platform is I-beam tube.
2. The hydraulic towers can be moved freely alongside the platform and turn 360 as operating. The hydraulic cylinders work vertically, resulting in maximum force and most powerful effectiveness.
3. High quality chains and plate tools are used flexibly and conveniently with long life. The entire series of tools accessories
enable to do any misshape correction work.
4. Hydraulic system with good design has powerful driving force, long life and low failure rate.
5. Major clamps fix the auto quickly, firmly and accurately.
6. Applying parallelconnect synchronous hydraulic cylinder with high synchronous precision; the integral mechanical lock is processed one-time.
7. Without synchronous errors; the sharing beam adopts high quality manganese plate and all the welding positions ensure
the position of shafts and holes.
8. Special design for lifting forces; in order to improve the service life of the oil cylinder, increase the oil cylinder diameter is
increased and double oil cylinder lift at the same time.
