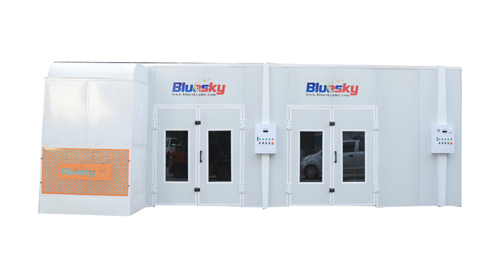

Name: Wood painting spray machine
Brand: Bluesky Spray Booth
Availability: InStock
Rating: 5 (1 reviews)

Description

Specification

Innerside Dimension(mm)L×W×H	12000x5000x3000mm
Painting Room Dimension(mm)L×W	6000x5000x3000mm
Drying Room Dimension(mm)L×W	6000x5000x3000mm
Incoming Door Dimension(mm)W×H	1900×2300mm
Delivery Door Dimension(mm)W×H	1900×2300mm
Air Capacity(m3/h)	20000
Air Speed(m/s)	0.2-0.3
Ventilation Rate(Times/Hour)	255
Fan Power(KW)	15.5kw 15.5KW

Wall Panels
Panels 50mm EPS colorful steel skin panel,
steel 0.4mm thick,12kg/cbm and flame-resisting EPS,
tongue groove style, compound construction, anti-flame and heat-insulation.

Lighting
8*4*36W lamp,Illuminance exceeding 800LUX, non explosive

Infrared Heating Tubes
24 pieces ×1 KW infrared light heater ,anti-explosion

Generator Setting Type
Side intake air

Intake Air Fan For painting room
1×5.5KW double-intake centrifugal fans, air capacity: 20000m³/h
Exhaust Fan For painting room
1×5.5 KW

Filter System
Intake air: pre-filter, high efficiency filter(ceiling filter)
Exhaust air filter;

Electronic control system
The Lighting switch, spray paint, baking temperature, time setting, emergency stop switch, power supply
