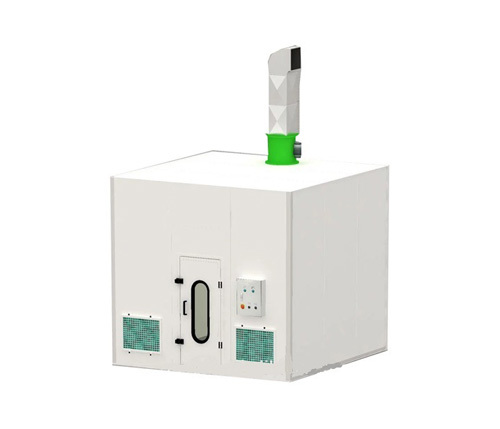

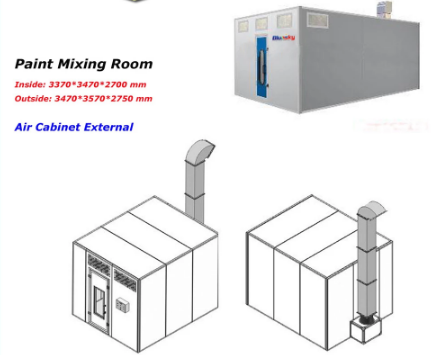

| Product Name | Paint Mixing Room | Product Model: | BSH-M4 |
| Dimensions: | Length (mm) | Width (mm) | Height (mm) |
| Outer Size | 3,470 | 3,570 | 2,750 |
| Inner Size | 3,370 | 3,470 | 2,700 |
| Personnel Door | With Handle & Lock | 800 | 2000 |
| Features: | Total Power 1.5KW | Electricity: 220v/ 1ph/ 50hz | |
| 1. Basement | Concrete basement. | ||
| 2. Wallboard and Ceiling panel | The total thickness of the wallboard is 50mm, infill is EPS material, color coated steel booth side. | ||
| 3. Lighting | Ceiling light x 12pcs, 36w each, two groups, with light fixtures | ||
| 4. Air system | External air cabinet with air-exhaust filter; 1.1KW air-exhaust fan, air flow 3,000m³/h; 2,500mm height air duct include elbow x 1pc |
||
| 5. Air Purification | Primary filter x1 set; Air-exhaust filter x1 set. | ||
| 6. Control system | Control Panel x 1 unit. | ||
| Others | All Hardware, Fasteners, and Sealants | ||
