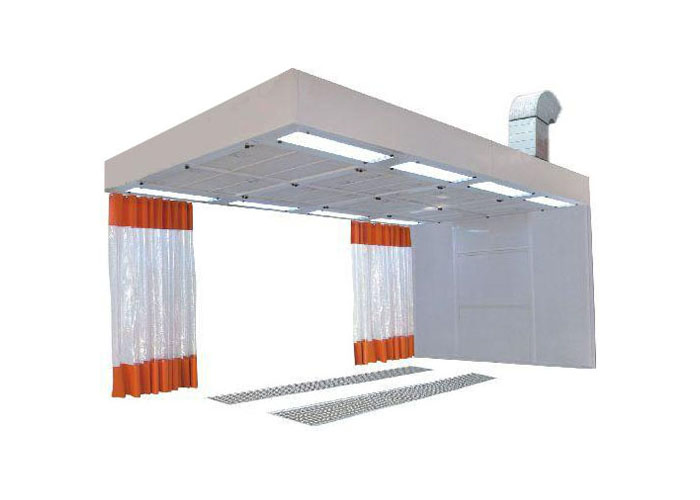

| Product Name | Prep Station | Product Model: | BSH-PR8200 |
| Dimensions: | Length (mm) | Width (mm) | Height (mm) |
| Outer Size | 7,100 | 3,700 | 3,220 |
| Inner Size | 6,000 | 3,480 | 2,700 |
| Features: | Total Power 7 KW | Electricity: 380v/ 3ph/ 50hz | |
| 1.Cabin Exhaust | Framework made of section bar,cabin body assembled by painted steel plate. It offers firm structure,nice appearance,convenient maintenance. | ||
| 2. Walls | Back | EPS foam plate 50mm thick | |
| Front | PVC curtains, 2pcs, color optional | ||
| Sides | PVC curtains, 4pcs, color optional | ||
| 3. Basement | Two rows of grid plates adopted; Air ducts in the ground need to be prepared in advance by customer own. | ||
| 4. Air Purification system | Air-Inlet Filter x 4 pieces/set; Air-Exhaust Filter(Rear Wall) x 3 pieces/set. 1. The high-quality filter screen has multiple layers, which is placed at the bottom of the plenum chamber, and supported by roof mesh. 2. The roof mesh is constructed from C-shaped steel with strong corrosion resistance, it is replaced easily, and can effectively catch the dust particle with it’s diameter of the over 5micron. |
||
| 5. Air System | Fans | YDW Centrifugal Fan one unit, 5.5 KW; Air capacity 15,000m³/h; Total pressure 800Pa. | |
| Cabinet & Air Ducts | Cabinet x 1unit for the Fan; Air Ducts x2 units. | ||
| Air Damper | Air Damper and Air Damper Actuator x 1 unit. | ||
| 6. Lighting System | 32pcs, 36w each, with Light Fixtures, anti-explosion design, mounted on side of ceiling, uniform an brilliant. | ||
| 7. Control System | Control Panel x 1 unit. | ||
| Others | All Hardware, Fasteners, and Sealants | ||
