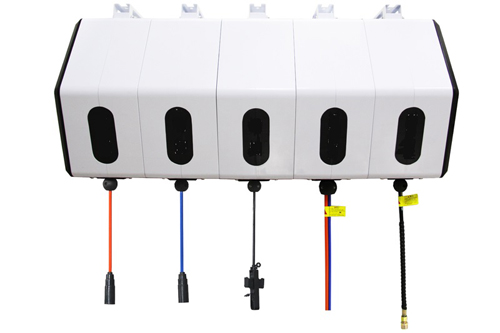

Combined hose reel BSH-CB5N

Item No.: BSH-CB5N
1, Snap-in installation method, simple operation
2, Free match the quantity of water, electricity, gas, double pipe, high pressure drum
Description
Description
New combination car wash hose reel BSH-CB5N

Name Specification
water hose reel Common pressure 1.5MPa, burst pressure: 4.5MPa
Transportable media: compressed air, atmospheric water
Water pipe specification 6.5mm×10.0mm×10M, material: PU polyether yarn clamping tube
Air hose reel Common pressure 1.5MPa, burst pressure: 4.5MPa,
Transportable medium: compressed air
Trachea specification 6.5mm×10.0mm×10M, material: PU yarn clamping tube
Cable Hose Reel Rated power: Incompletely pulled out 8A, completely pulled out: 15A, rated voltage: 250V AC frequency: 50-60Hz
Cable specification: 2x1.5mm2 input line length: 1M, output line length: 10M
Twin hose reel of air and water Common pressure 1.2MPa, burst pressure: 3.6MPa
Water pipe size 8.0mm×12.0mm (over normal pressure water)
Trachea specification 6.0mm×10.0mm (over compressed air)
Full length 7M
High-pressure water hose reel Common pressure 15MPa, burst pressure: 45MPa
Trachea specification 8.0mm×17.0mm×10M, material: steel wire braided rubber hose
