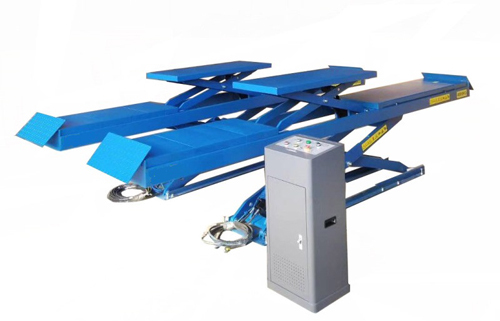

In-ground Alignment Scissor Car Lift LS-3500
Specification:
Lifting weight
|
4000kg |
Secondary lifting weight
|
3500kg |
Initial height of platform
|
330mm |
Host lifting height
|
1850mm |
Second lifting height
|
450mm |
Host lifting bridge length
|
4500mm |
Second lifting bridge length
|
1400mm |
Host lifting bridge width
|
620mm |
Second lifting bridge width
|
550mm |
Motor power
|
3.0kw |
Air pressure
|
6-8kg |
Equipment weight
|
2.1t |
Unlock method
|
pneumatic unlock |
Packing size
|
4650*550*750（mm）*2pcs
650✘540✘1050(mm) |
Features
1. In-ground mounting makes the workplace clean, high space usage.
2. High quality steel ensures the intensity and durable.
3. The surface adopt the static powder coating, good adhesion, high hardness.
4. Double series synchronous balance cylinders ensure the platforms synchronously lifting.
5. The longer and wider platform adopts to various vehicles.Level can be adjusted accurately,suitable for all kinds of high-precision four wheel alignment
6. Pneumatic double teeth automatic locks. Mechanical safety lock engaged automatically, with pneumatic release when lowering. The use of explosion-proof valves ensure the working safe.
7. Italian oil seal to make sure no oil leakage, prolongs the life of the cylinder.
8. All pivot joints made with self-lubrication bushing ensure long service life
9. Rollover-prevent function, maximum limit height function, synchronous measuring function and safety voltage control system ensure the working safe.
